카다로그 번호 : MP-510
규격 : 5~500V
브랜드 : Major Science
비고 :
상세설명

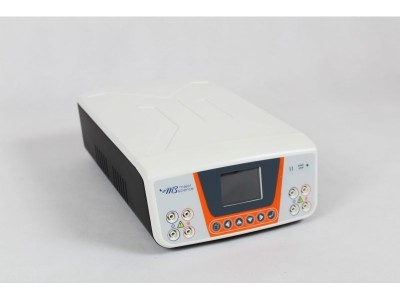

MS Lively Power Supply is power enough to perform horizontal and vertical electrophoresis as well as two dimensional electrophoresis SDS-PAGE applications. In addition, it can operate with a fully programmable mode and offer up to 6 multi-step setting conditions. The 2.4” TFT-LCD colored screen also allows you to see all the running/setting conditions while operating. For those beginners in electrophoresis, the built-in data for some typical running condition could be extremely helpful. All 3 models are designed with great safety features to ensure safety of the lab and experiment.
Features
• Four pairs of output terminals
• 2.4” TFT-LCD colored screen shows all parameters during operation
• Timer with alarm function
• Compact size with stackable case
• Constant voltage/ current/ power operation mode
• Typical Running Condition helps electrophoresis beginner
• Wide application for DNA, RNA and protein electrophoresis and blotting
• Advanced safety device design
• Universal rated voltage for worldwide distributions
Specification
Cat. No. | MP-510 |
Output Voltage / Inc | 5 – 500 / 1V |
Output Current / Inc | 1 – 800mA / 10mA |
Power | 300W |
Rated Voltage | 100-240V~: 47-60Hz |
Type of Output | 1. Voltage or Current with automatic crossover |
Program Storage | 30 programmed files |
Program Multi-Step | Up to 6 steps |
Editable Program Function | 1.Typical running conditions program |
Display | 2.4” TFT |
Control | Microprocessor controller |
Safety Device | No Load detect |
Leakage detect | |
Over temperature protection | |
Over load detection | |
Sudden load change detection(could be enabled by proper setting) | |
Shrouded plugs and sockets | |
Timer | Constant: 9999 (min) with alarm/ Continuous |
Crossover | Yes |
Stackable | Yes |
Automatic Recovery After Power Failure | Yes |
Operating Temperature | 4℃~ 40℃ |
Material | PC housing and flame retardant ABS faceplate |
Dimension | Approx. 8.5"x13.2"x4.1" (215 x 335 x 104 mm) |
Weight | Approx. 4.6lb (2.1 kg) |
Ordering Info.
Cat. No. | Description |
MP-510 | Lively 500V Power Supply |
