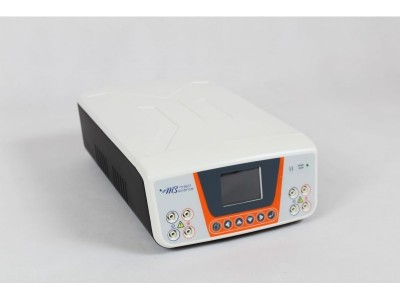

300V Power Supply
카다로그 번호   :   MP-310
규격   :   5~300V
브랜드   :  Major Science
비고   :

상세설명

MS Lively Power Supply is power enough to perform horizontal and vertical electrophoresis as well as two dimensional electrophoresis SDS-PAGE applications. In addition, it can operate with a fully programmable mode and offer up to 6 multi-step setting conditions. The 2.4” TFT-LCD colored screen also allows you to see all the running/setting conditions while operating. For those beginners in electrophoresis, the built-in data for some typical running condition could be extremely helpful. All 3 models are designed with great safety features to ensure safety of the lab and experiment.

​


Features

•  Four pairs of output terminals

•  2.4” TFT-LCD colored screen shows all parameters during operation

•  Timer with alarm function

•  Compact size with stackable case

•  Constant voltage/ current/ power operation mode

•  Typical Running condition helps electrophoresis beginner

•  Wide application for DNA, RNA and protein electrophoresis and blotting

•  Advanced safety device design

•  Universal rated voltage for worldwide distributions


​Specifications

Cat. No.

MP-310

Output Voltage / Inc

5 - 300V / 1V

Output Current / Inc

1 - 700mA / 1mA

Power

Input:200W;  Output: 150W

Rated Voltage

100-240V~; 47-60Hz

Type of Output

1. Voltage or Current with automatic crossover
2. When target constant mode is set, system automatically adjusts the two other parameter to maximum to allow constant run (later could be changed by user)

Program Storage

30 programmed files

Program Multi-Step

Up to 6 steps

Editable Program Function

1.Typical running conditions program
2.Manual editable program

Display

2.4” TFT

Control

Microprocessor controller

Safety Device

No Load detect

Leakage detect

Over temperature protection

Over load detection

Sudden load change detection(could be enabled by proper setting)

Shrouded plugs and sockets

Timer

Constant: 9999 (min) with alarm/ Continuous
Program: 999 (min) with alarm/ Continuous

Crossover

Yes

Stackable

Yes

Automatic Recovery After Power Failure

Yes

Operating Temperature

4℃~ 40℃

Material

PC housing and flame retardant ABS faceplate

Dimension

Approx. 8.5"x13.2"x4.1" (215 x 335 x 104 mm)

Weight

Approx. 4.6lb (2.1 kg)


Ordering Info.

Cat. No.

Description

MP-310

Lively 300V Power Supply
